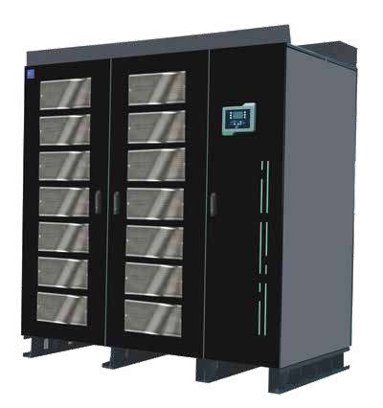

The Fuji Electric Falcon X7 UPS (160–800kVA) is designed to provide superior protection, energy efficiency, and flexibility for large-scale power applications. Using advanced T-Type NPC 3-level IGBT inverters and transformer-less design, it ensures reduced losses, compact footprint, and high system performance for today’s demanding industrial, data center, and infrastructure environments.

Key Features & Benefits

Performance & Efficiency

Transformer-less design with efficiency up to 96.5%.

Unity or 0.9 output power factor for maximum power availability.

Double-conversion architecture for complete power conditioning.

Intelligent Eco Mode operation for enhanced energy savings.

Reliability & Protection

Input PF >0.99 with low THDi (<3%) for grid compatibility.

Wide input voltage tolerance: ±20% @ 400V AC.

Advanced fault tolerance with independent three-phase control.

Overload capacity: 110% for 1hr, 125% for 10min, 150% for 1min.

Crest factor: 3:1, suitable for demanding electronic loads.

Flexibility

Configurable for 50/60 Hz operations.

Parallel scalability for redundancy and capacity expansion.

Supports SMF, Tubular, Ni-Cd, and Li-Ion batteries.

40 battery blocks standard, configurable (38–48).

Environmental & Operational Safety

Operates at 0–40°C (rated), with storage up to 60°C.

IP20 ingress protection and acoustic noise <68dBA.

Relative humidity up to 95% (non-condensing).

Maximum altitude: 1000m without derating.

User-Friendly Management

128×64 LCD graphic display with LED mimic (optional touchscreen).

Simple integration with SNMP, MODBUS-RTU, and dry contact interfaces.

Front-bottom cable entry and compact footprint for easy installation.

Applications

Large Data Centers & Cloud Infrastructure

Telecommunications & Broadcasting

Industrial Manufacturing & Process Industries

Commercial Buildings & IT/ITES

Healthcare & Hospitals

Power & Utility Backup
